Description

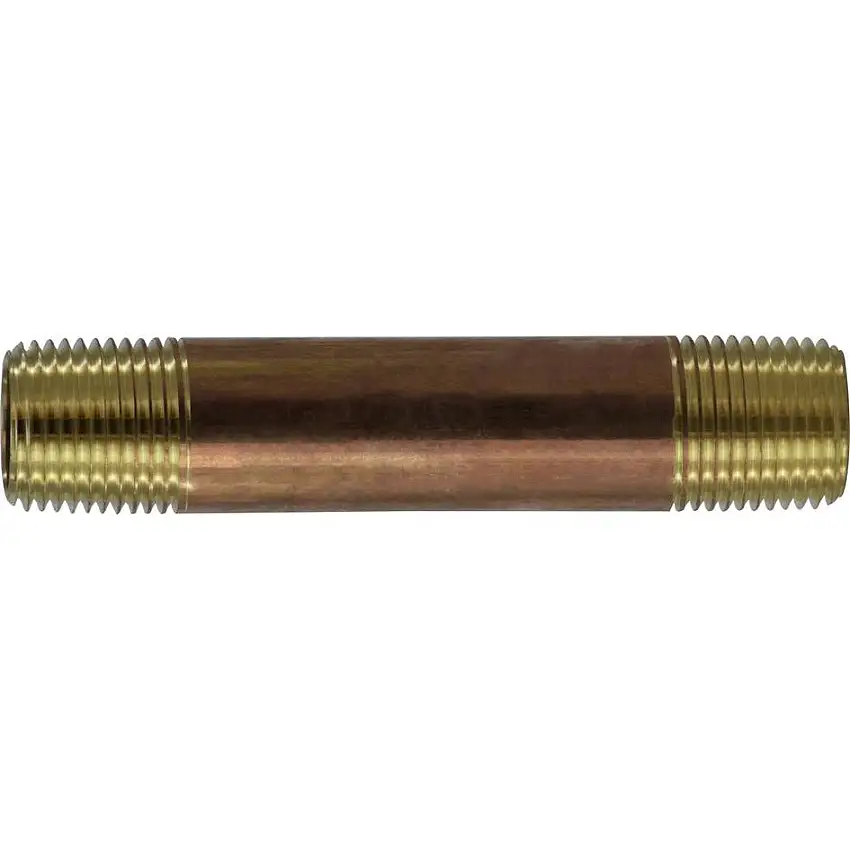

Description The1/2 x 3 Red Brass Nippleis a pipe fitting made from red brass, commonly used for merging pipes of the same size or connecting fittings. It is typically a short length brass pipe with threads at both ends. These nipples are often used in various plumbing, hydraulic, and industrial systems.
| Specification | Value |
|---|---|
| TYPE | Red Brass Nipple |
| DESIGN | Compact design, making it ideal for short distances between pipes or fittings. |
| MATERIAL | Brassprovides long-term durability and corrosion resistance. |
| MATERIAL CONSTRUCTION | Lead-Free Red Brass |
| WEIGHT (lbs) | 0.190 |
| APPROXIMATE WEIGHT (LBS) | 0.23 |
| BOX/CASE | 25/300 |
| ADDITIONAL INFORMATION | 0.107″ Wall Thickness |
| CONNECTION SIZE 1 | 1/2″ |
| CONNECTION SIZE 2 | 1/2″ |
| CONNECTION TYPE | MPT|MPT |
| CONNECTION TYPE 1 | MPT |
| CONNECTION TYPE 2 | MPT |
| DIAMETER | 0.626″ ID x 0.84″ OD |
| DIMENSION STANDARDS | ANSI B1.20.1, WW-N-351, MS 51846 |
| FITTING TYPE | Nipple |
| LENGTH | 3″ |
| PRESSURE CLASS | 125 lb |
| PRESSURE RATING | 900 psi at 100 deg F |
| SCHEDULE RATING | SCH 40 |
| TEMPERATURE RATING | -20 to 400 deg F |
| THREAD SIZE | 1/2-14 |
| APPLICATIONS | Ideal for Gas Systems, Automotive Applications, Industrial Systems, Hydraulic Systems and Plumbing Systems. |
| BRAND | Midland Industries |
