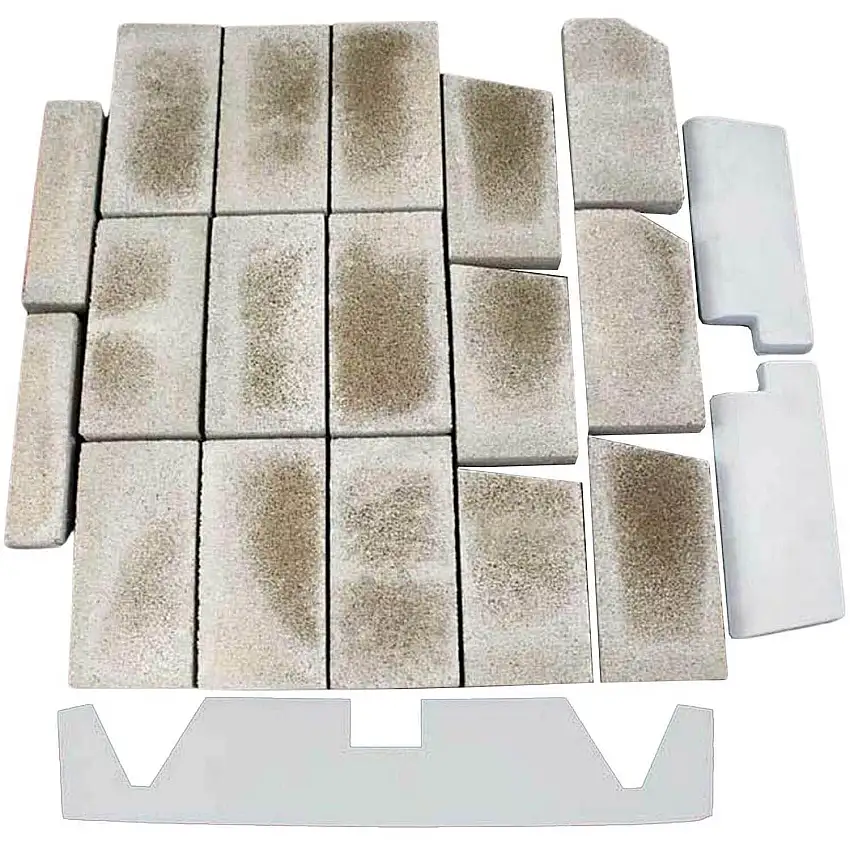

Replacement Complete Firebrick Assembly For Quadra-Fire Voyageur Wood Inserts.
Includes the following parts:
| No. | Part Number | Dimensions | Quantity |
| 10.1 | PUMICE-BRICK-60 | 9″ x 4.5″ x 1.25” (with angle) | 2 |
| 10.2 | PUMICE-BRICK-61 | 9″ x 4.5″ x 1.25” (with angle) | 2 |
| 10.3 | PUMICE-BRICK-62 | 8″ x 4.5″ x 1.25” (with angle) | 2 |
| 10.4 | PUMICE-BRICK-7 or CLAY-BRICK-5 | 9″ x 2.25″ x 1.25” | 2 |
| 10.5 | 832-0550 or CLAY-BRICK-1 | 9″ x 4.5″ x 1.25” | 9 |
| 10.6 | SRV7063-150 | Brick Cover RH | 1 |
| 10.7 | SRV7063-151 | Liner Bottom | 1 |
| 10.8 | SRV7063-163 | Brick Cover LH | 1 |
Replacement For Part Number:
- SRV7063-021
UPC:652174618477
